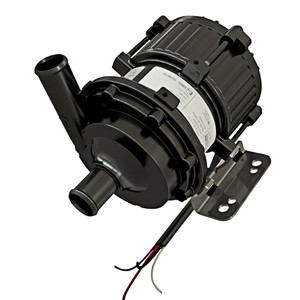

Johnson Pump CM100HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm [10-13576-02]

CM100HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PPS GF
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
• System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
• Port size: 25 mm (1") hose or 38 mm (1½") hose
• Dry running: Max. 20 minutes
• Input Power: Max. 315 W
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.
